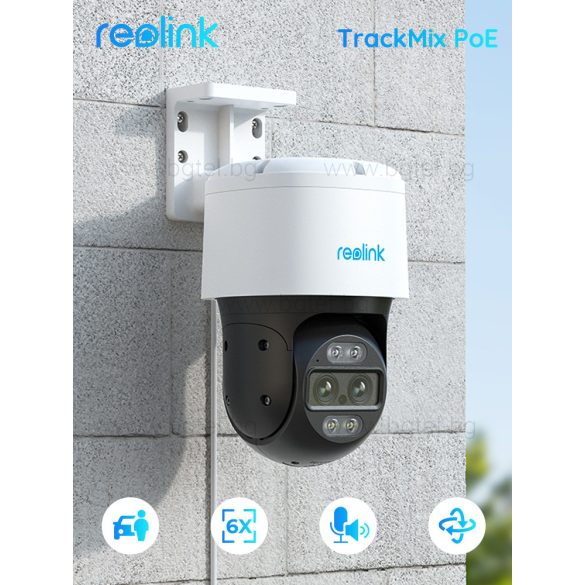

Control Your Cameras, Hands-Free


Dual Lens | Dual View | Dual Tracking
The wide-angle lens and the telephoto lens of the camera bring you a broad overview and a clear closeup simultaneously, and the two images are displayed on the same screen.
TrackMix LTE can pan 355° and tilt 90° to automatically follow the moving object and display it in both wide-angle and close-up views.
The dual-lens camera captures both full-view and close-up images of the same event synchronously, and presents them on the same screen!
The dual-tracking camera can pan, tilt (up to 355°H, 90°V) to auto track the object and show it in both the panoramic and zoomed views.
Both on One Screen
The camera with 4K 8MP Ultra HD resolution captures images with great details. Discover more when zooming in.
Smart Detection & Two-Way Audio
TrackMix PoE can distinguish people, vehicles and pets from other objects, providing more accurate alerts. Plus, you can talk back via the camera's built-in mic and speaker.
Person/Vehicle Detection
|
Two-Way Audio |
Pet Detection
|
The two infrared lights and a spotlight built in TrackMix enable a clear night vision even at night. You can easily switch between the full-color and black-and-white images according to different situations.
2 IR LEDs 2 Spotlight
Thanks to Power over Ethernet (PoE) technology, this IP camera can transmit videos and be charged simultaneously via only one network cable. You can install this camera quickly and nicely.
The time lapse function can capture dynamic processes, such as sunrise and sunset, and accelerate them into minutes, allowing you to seize and view these stunning scenes.
Note: Only the wide-angle view supports time lapse.
Be it pouring rain or scorching heat, this camera can work perfectly in a variety of environments, thanks to the sturdy and solid housing.
This security camera records motion-triggered events for later playback. You can save them locally on a micro SD card (up to 128 GB).
You can access the encrypted Reolink Cloud and play back the uploaded event videos anytime anywhere without worrying about losing them. Save all the important moments in a reliable and secure way.
Accurate Real-Time Alerts
This camera sends you real-time alerts when it detects something suspicious. You can configure when you want to enable notifications—all the time or on a specific schedule.
Via the free Reolink App/Client, you can easily click to check what's happening in your home or business and quickly search for the key evidence or funny moments.
You can customize the motion zone to your liking, deciding where where objects' movements will be detected and where not.
As easy as saying “Hey Google, show me the backyard”, you can check what’s happening there on your Google Nest Hub or Chromecast-enabled TVs.
TrackMix-PoE-IP-Camera-Specifications |
||
Model |
Reolink TrackMix PoE |
|
Video & Audio |
Image Sensor |
1/3"+1/2.8"CMOS Sensor |
Video Resolution |
Up to: 3840 x 2160 (8.0 megapixels) at 25 frames/sec |
|
Lens |
f=2.8mm@F=1.6,f=8mm@F=1.6 |
|
Video Format |
H.264, H.265 |
|
Field of View |
Horizontal: 104°-38° |
|
Vertical: 60°-21° |
||
Zoom Mode |
6X hybrid zoom |
|
Day & Night |
IR-cut filter with auto-switching |
|
Infrared Night Vision |
Up to 15 meters (50ft) (LED: 2pcs/850nm) |
|
Color Night Vision |
Spotlights: 2pcs/6500K/450 lumens |
|
Audio |
Two-way audio |
|
Power |
PoE |
IEEE 802.3af, 48V active |
DC Power |
DC 12.0V⎓2A, <12W |
|
Interface |
Power |
DC power port |
System |
Reset button |
|
Ethernet |
One 10M/100Mbps RJ45 |
|
Storage |
Micro SD card slot (Max. 256GB) |
|
Audio |
Built-in microphone and speaker |
|
Pan&Tilt |
Pan &Tilt Range |
Pan: 355°, Tilt: 0°~90° |
Pan Speed |
2.5°-90°/s (Speed can be set) |
|
Tilt Speed |
1.5°-60°/s (Speed can be set) |
|
Preset |
32 |
|
Auto Tracking |
Support |
|
Software Features |
Frame Rate |
Mainstream: 2fps - 25fps |
Substream: 4fps - 20fps |
||
Code Rate |
Mainstream: 4096Kbps -8192Kbps |
|
Substream: 128Kbps -1228Kbps |
||
Browsers Supported |
Edge, Chrome, Firefox, Safari |
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Smart Alarms |
Motion detection; person detection; vehicle detection; pet detection (beta) |
|
Recording Modes |
Motion/scheduled recording (default: motion recording) |
|
Tracking Method |
Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First |
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
|
Maximal User Access |
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) 20 users (1 admin account & 19 user accounts); |
|
Work with |
Google Assistant |
|
Working Environment |
Temperature |
Operating temperature: -10°C~+55°C (14°F~131°F) |
Humidity |
Operating humidity: 10% ~ 90% |
|
Waterproof |
Support |
|
Size & Weight |
Dimension |
228*147*110mm |
Weight |
1.21KG |
|
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
