16X оптично увеличение - По-ясни детайли
на по-голямо разстояние
16X варифокалният обектив позволява на камерата бързо и точно да заснема отдалечени обекти, без това да повлияе на качеството на изображението. В допълнение, с 3D Zoom, камерата автоматично ще се движи, накланя и увеличава, за да фокусира върху избраната от вас област, вече няма нужда от ръчно управление стъпка по стъпка.

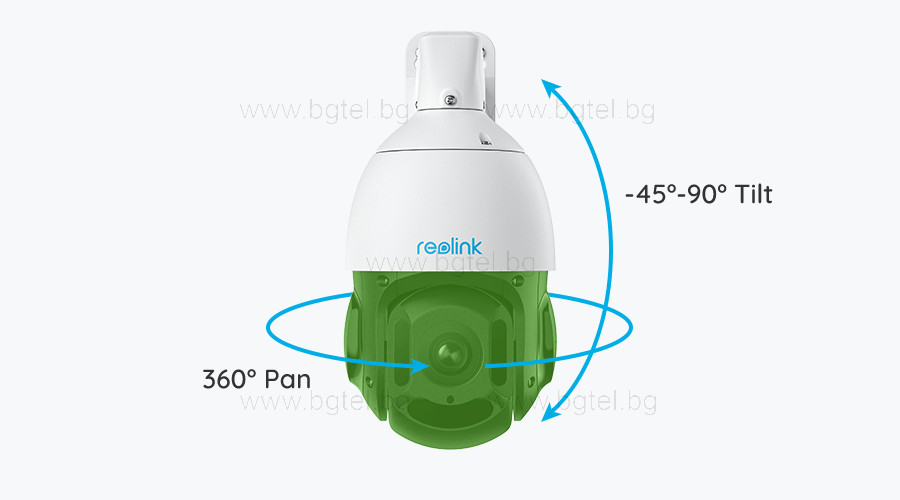

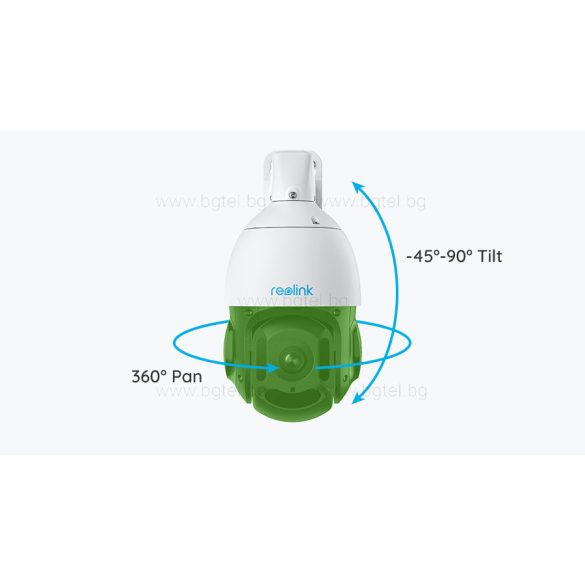

360°, 281°/s Pan (Horizontal) -45° - 90°, 56°/s Tilt (Vertical) |

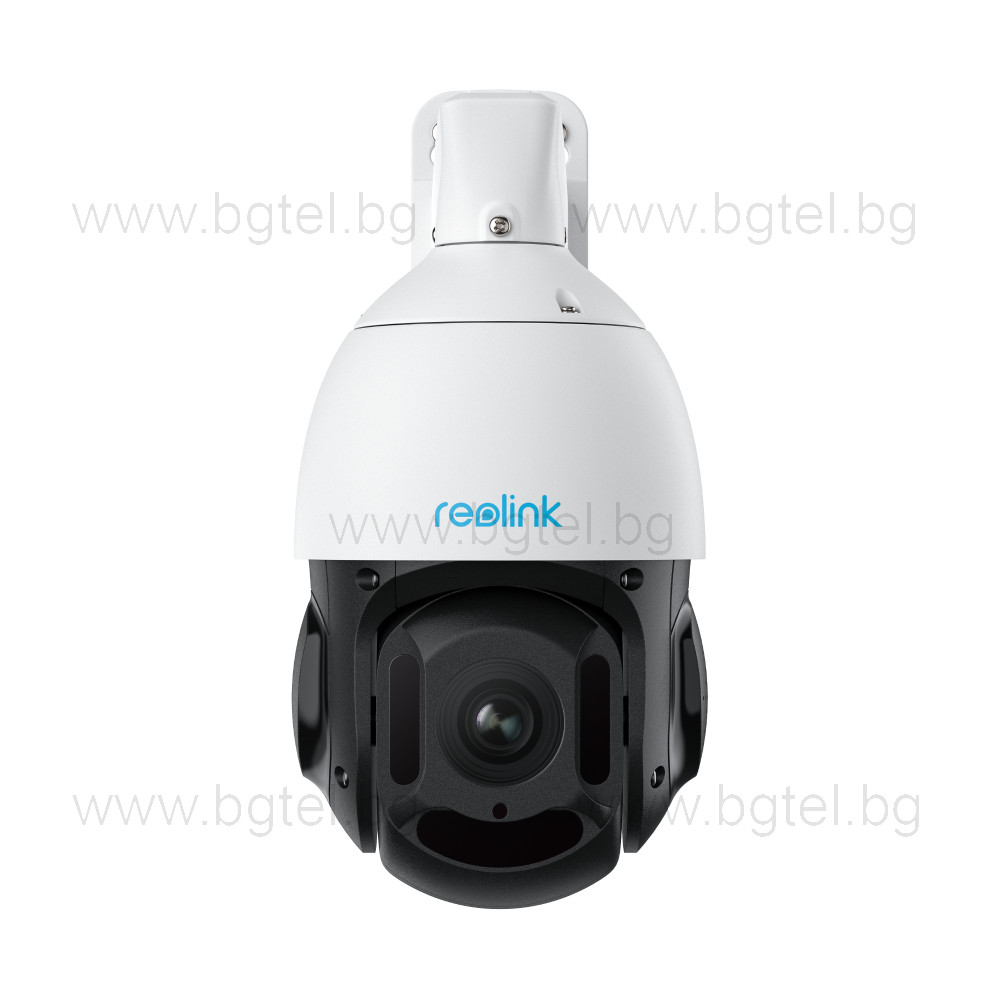

RLC‐823A‐16X‐IP‐Camera‐Specifications |
||
Model |
RLC‐823A 16X |
|
Video & Audio |
Image Sensor |
1/2.8" CMOS sensor |
Video Resolution |

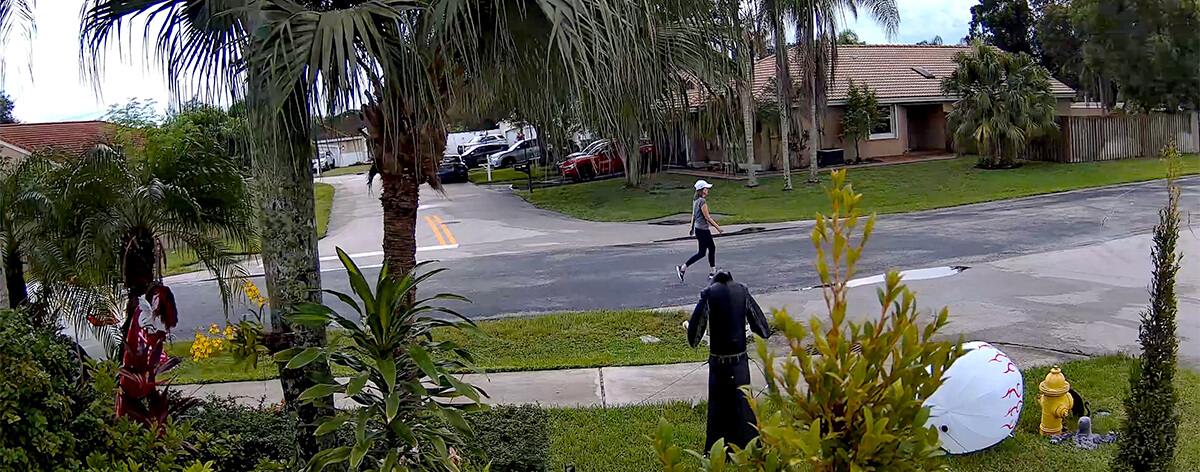

Default: 3840X2160 (8.0 Megapixels) at 25 fps |
|
Lens |
f=5.3‐86mm, zoom module |
|
Optical Zoom |
16X |
|
Video Format |
H.265 |
|
Field of View |
Horizontal: 54.2°‐3.6° |
|
Vertical: 41.7°‐2.1° |
||
Day & Night |
Auto‐switching with IR‐cut filter |
|

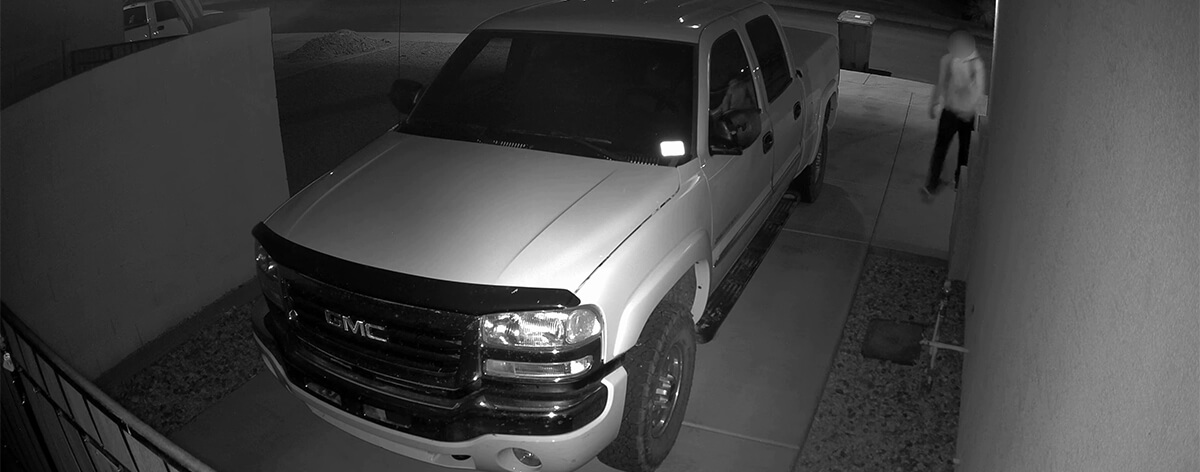

Infrared Night Vision |
Up to 80 meters (260 ft) (LED: 7pcs/28mil/850nm) |
|
Audio |
Two‐way audio |
|
Power |

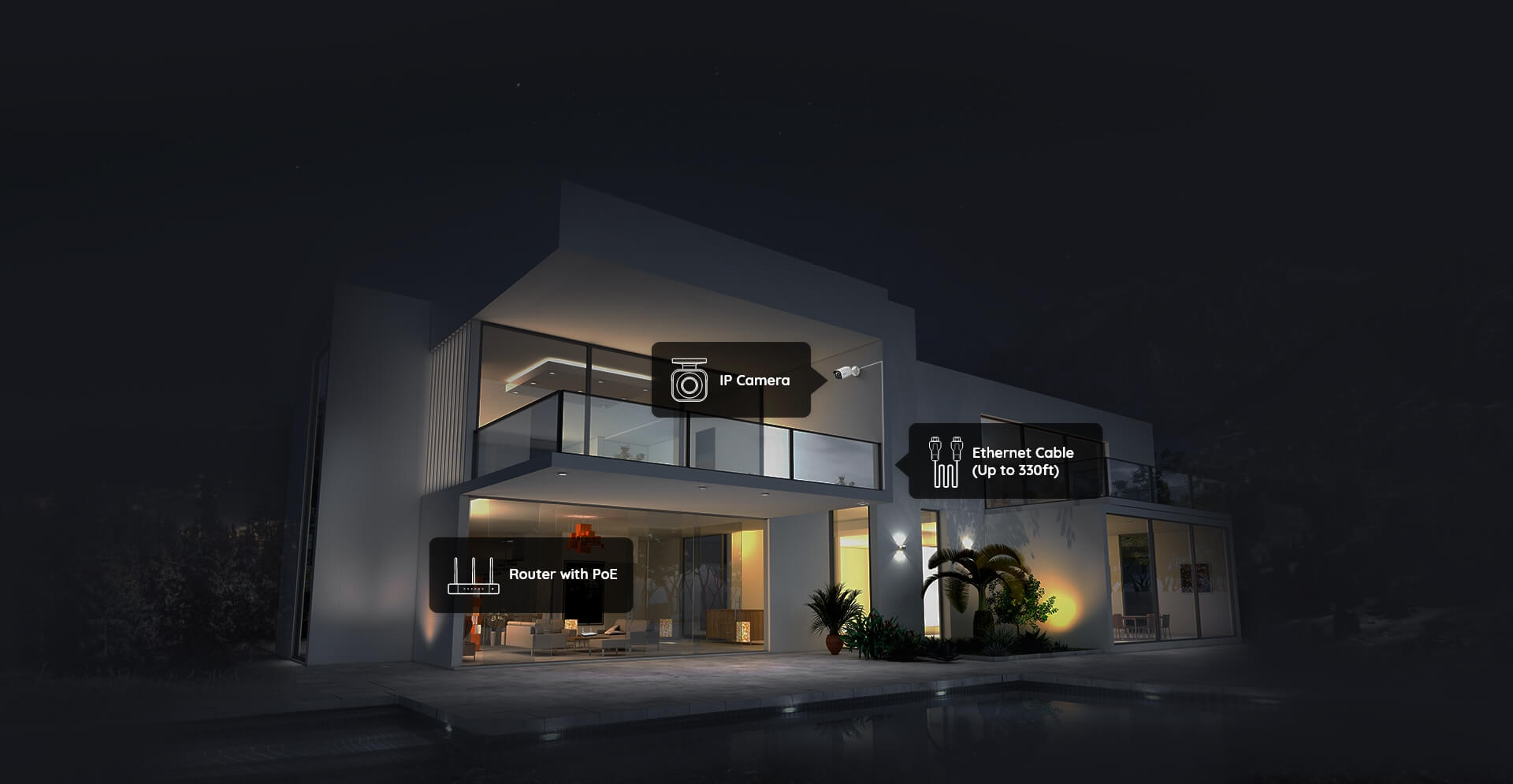

PoE |
IEEE 802.3at, 48V active |
DC Power |
DC 12.0V2A, <24W |
|

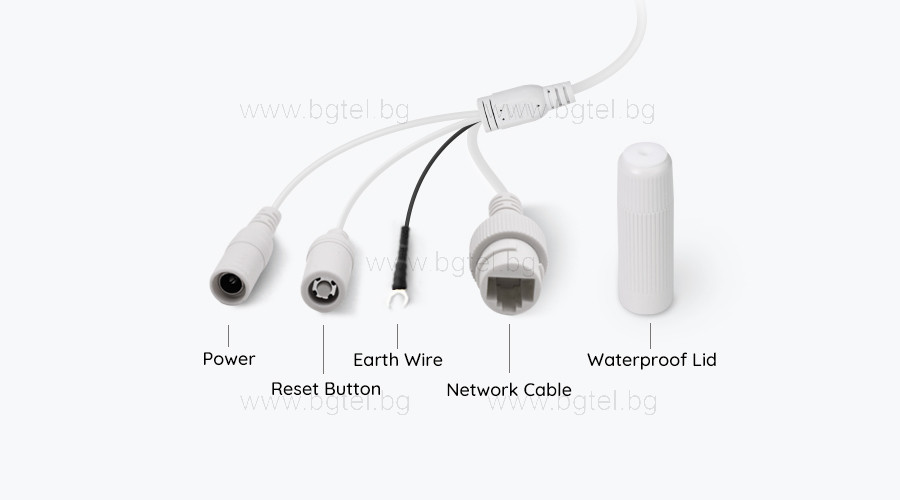

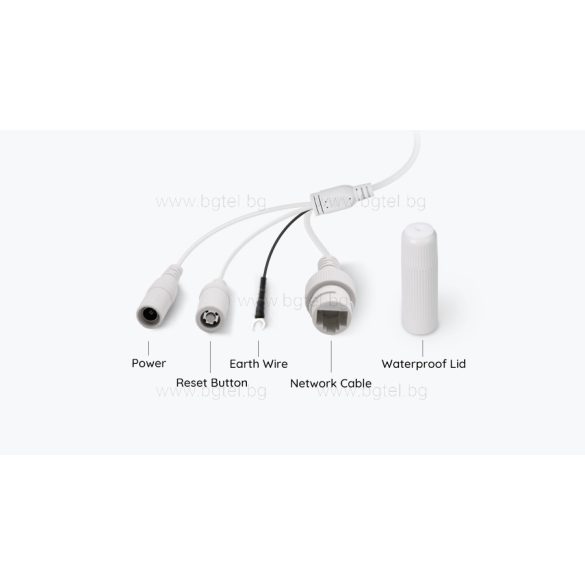

Interface |
Power |
DC power port |
System |
Reset button |
|
Ethernet |
One 10M/100Mbps; RJ45 |
|
Storage |

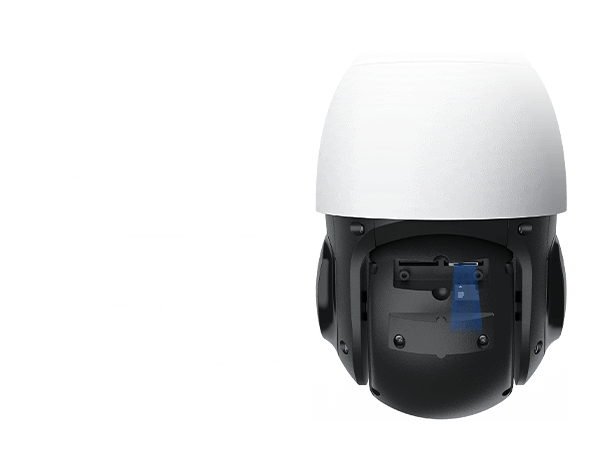

Micro SD card slot (max. 256GB) |
|
Audio |
Built‐in microphone and speaker |
|
Pan & Tilt |
Pan & Tilt Range |
Pan: 360°, Tilt: 0° ~ 90° |
Pan Speed |
1.4°‐281°/s (speed can be set) |
|
Tilt Speed |
1.4°‐56°/s (speed can be set) |
|
Preset |
64 |
|
Patrol |
1 patrol; up to 32 presets per patrol |
|
Auto Tracking |
Available |
|
Power‐off Memory Function |
Support |
|
Software Features |
Frame Rate |
Mainstream: 2fps ‐ 25fps (default: 25fps) |
Substream: 4fps ‐ 15fps (default: 10fps) |
||
Code Rate |
Mainstream: 4096Kbps ‐ 8192Kbps (default: 6144Kbps) |
|
Substream: 64Kbps ‐ 512Kbps (default: 256Kbps) |
||
Browsers Supported |
Edge, Chrome, Firefox, Safari |
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|

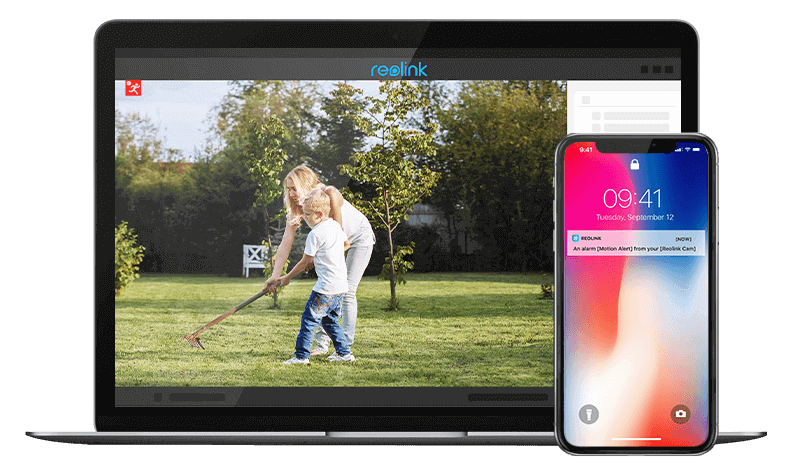

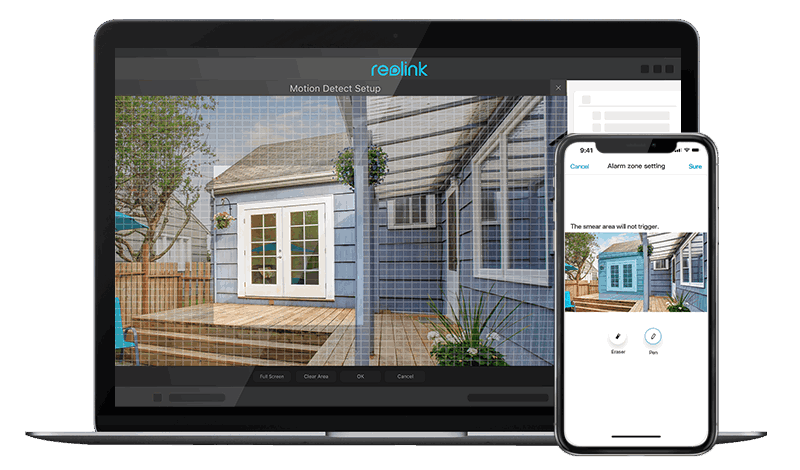

Smart Alarm |

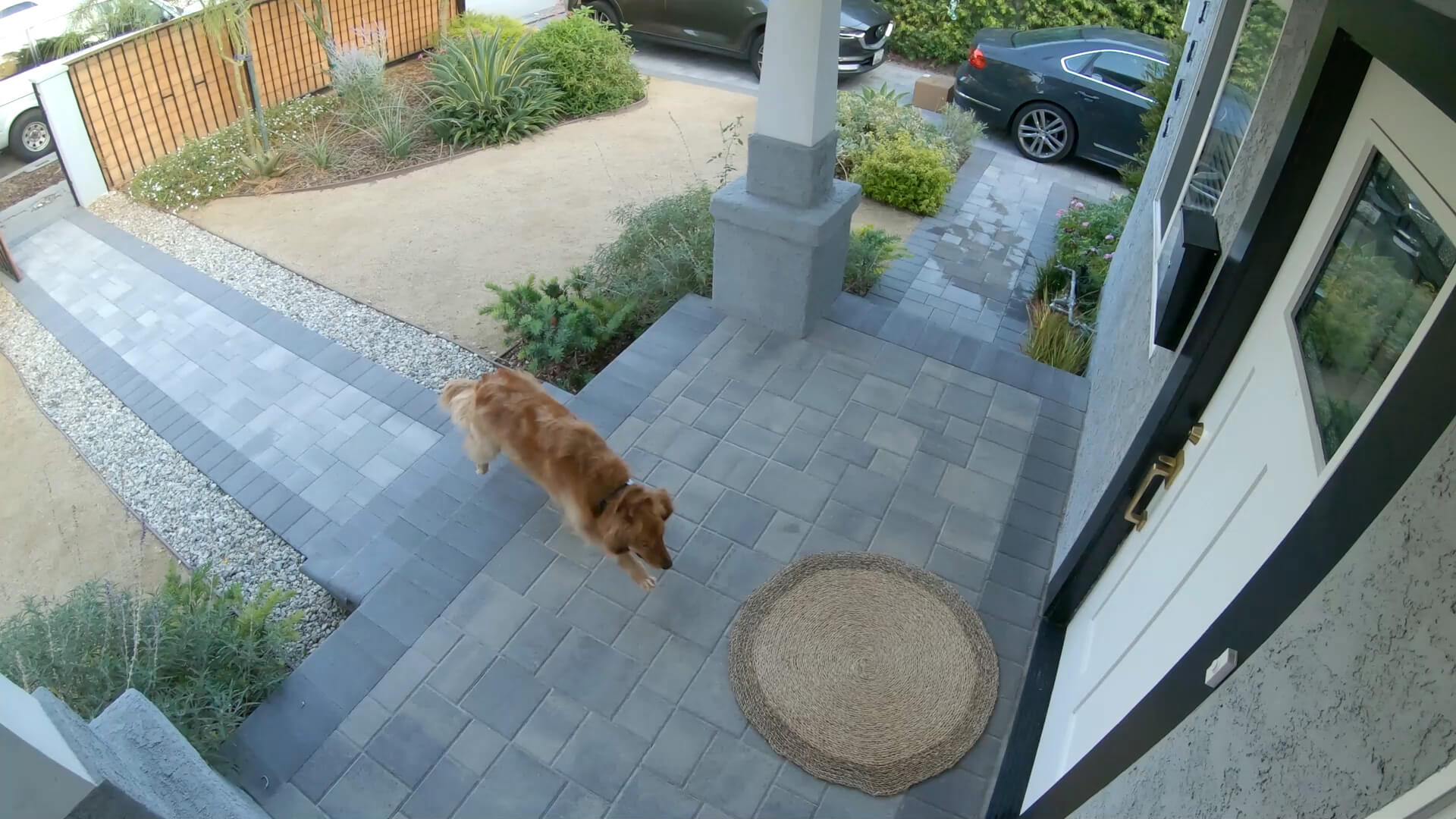

Motion detection; person detection; vehicle detection; pet detection |
|
Record Mode |

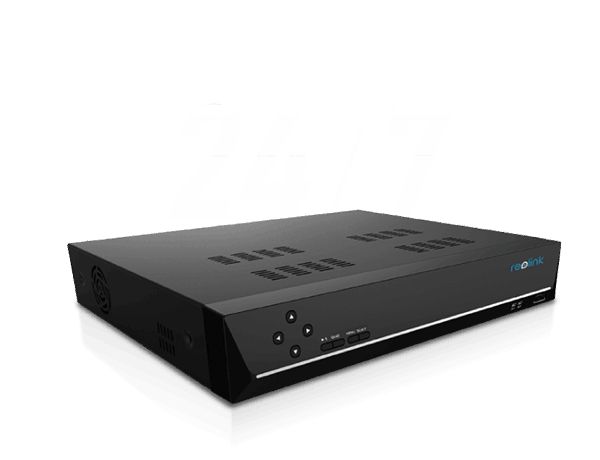

Motion‐triggered recording (default); 24/7 recording; scheduled recording |
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
|

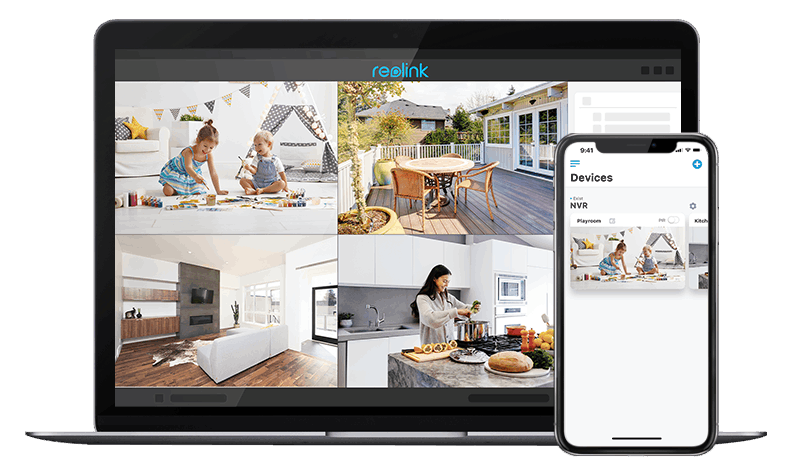

Maximal User Access |
20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
Smart Home |
Google Assistant |
|
Working Environment |
Temperature |
Operating temperature: ‐10°C ~ +50°C (14°F ~ 122°F) |
Humidity |
Operating humidity: 10% ~ 90% |
|

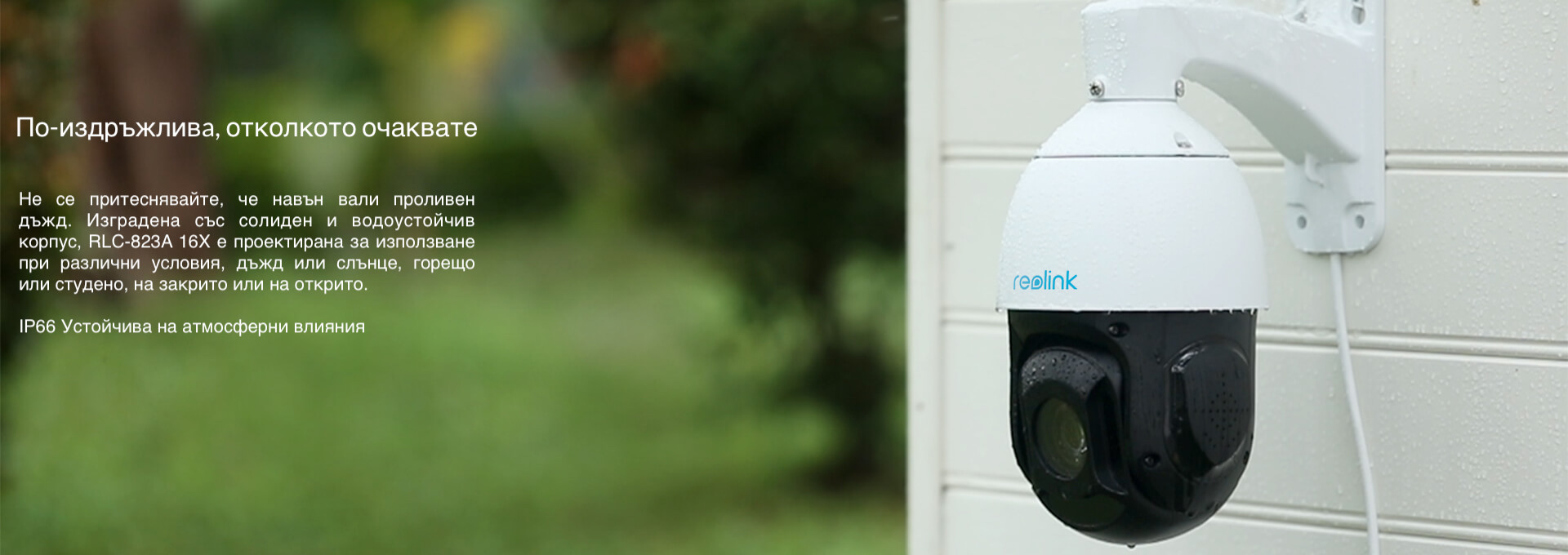

Waterproof |
IP66 |
|

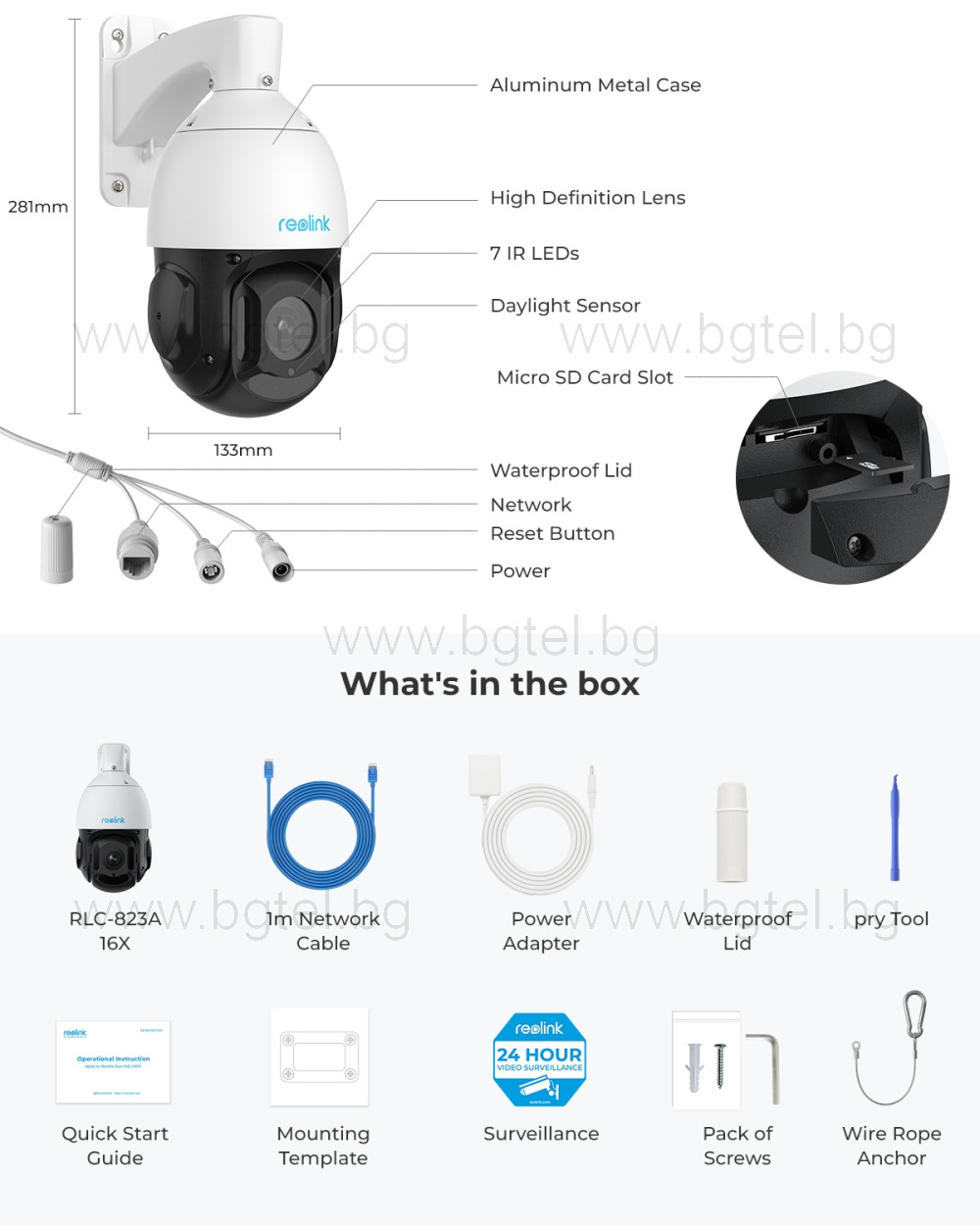

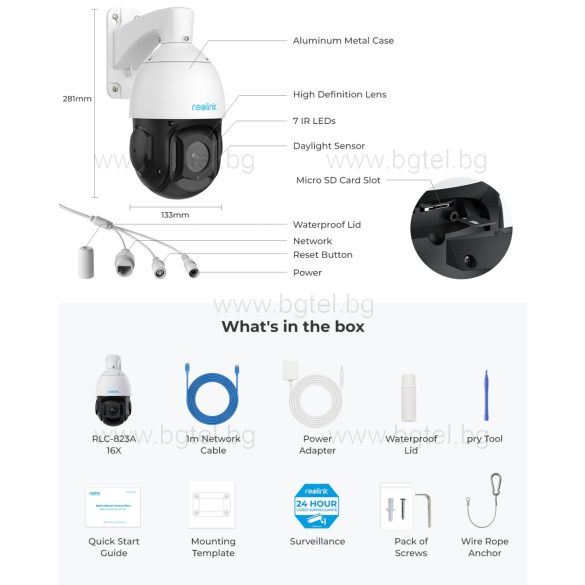

Size & Weight |
Dimension |

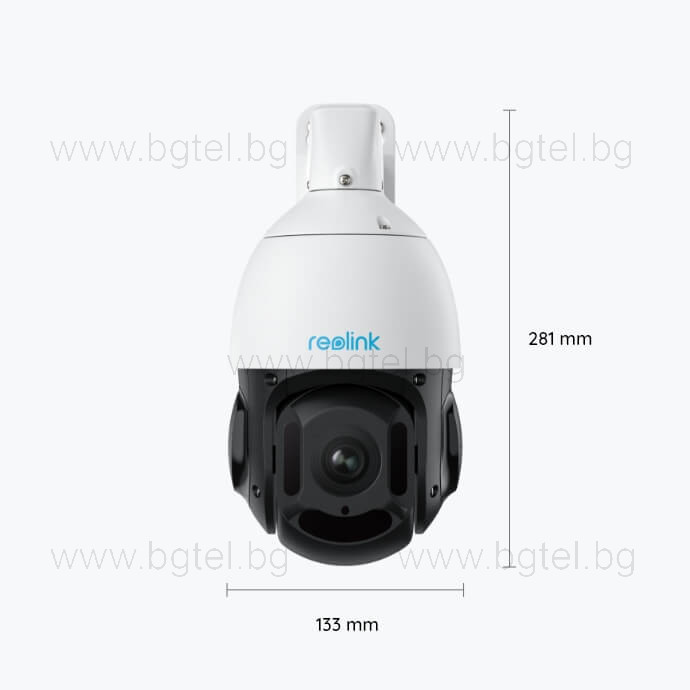

Φ132*281mm |
Weight |
1.6kg |
|
Warranty |
Limited Warranty |
2‐year limited warranty. For support, visit https://support.reolink.com/hc/en‐us/ |
