Description
Acquaintance
The ML-20TLHD outdoor panel is a brand new solution in the intercom production industry. Followed by the latest trends of limitation spreading different diseases we designed outdoor panel that doesn’t need touching call button to initiate a call. Simply place your hand in front of the panel and incoming call starts automatically.
Where it can be used
Slinex ML-20TLHD is an individual call panel (for 1 subscriber), which is suitable both for places and institutions with a large number of guests, and for private use:
• businesses that most often work by appointment: dentists, beauty salons, notary offices, etc.;
• night shops and pharmacies;
• small offices;
• in the common corridor or at the door to the apartment;
• private houses, etc.
The panel features
With Slinex ML-20TLHD, to make a call, it is enough to hold your hand near the button at a distance of up to 10 cm. This excludes the transmission of various kinds of infections by contact.

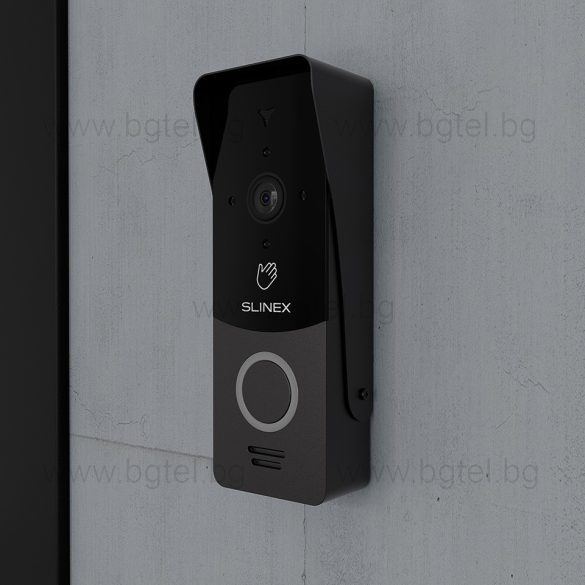

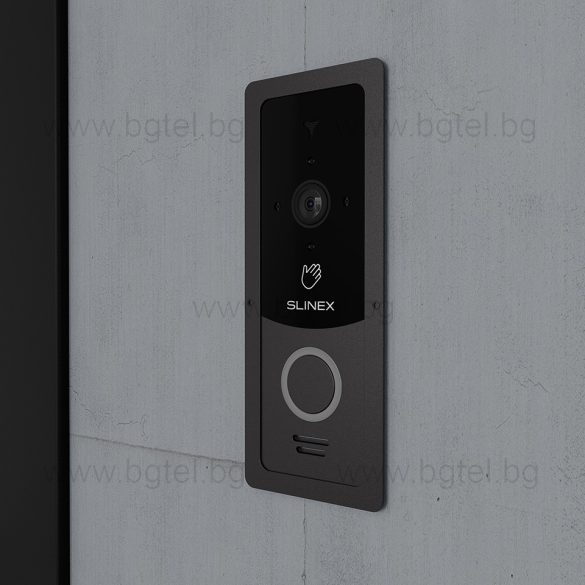

Appearance and camera

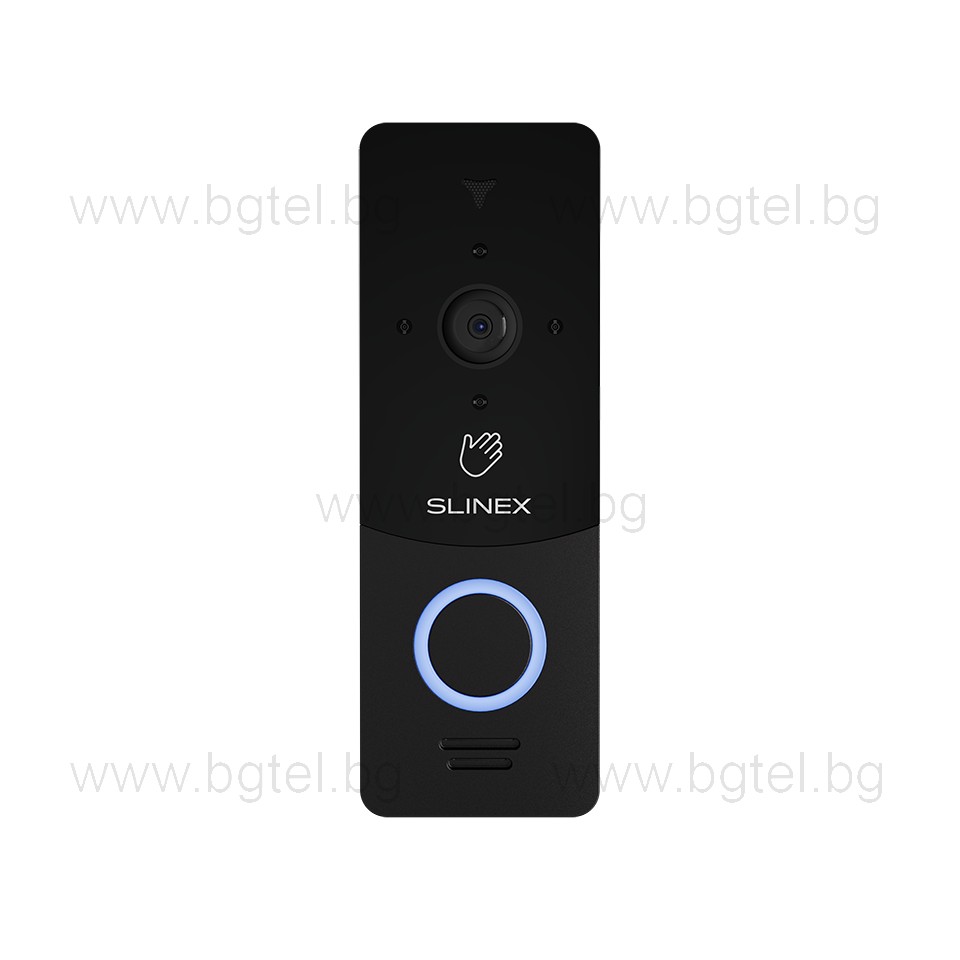

The new Slinex ML-20TLHD has a premium design of the ML-20HD call panel with only one difference – a new All-black coloring. The black metal case with a pleasant-looking acrylic overlay and blue LED backlight of the contactless call button will make you look at the familiar design in a new way!
As the camera supporting AHD and has a mechanical IR-cut filter, the user gets an image with an improved color rendition and deep image detail. Thanks to camera mode switch button (AHD-H, AHD-M, CVBS), ML-20TLHD can be connected to a large list of analog intercoms.
Horizontal viewing angle
115°
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
45×130×24 mm
Operating temperature
-40 – +50 °С
Characteristics
- Unique features
- • Touchless call system
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Wide-angle lens
• Mechanical IR cut filter
• Mechanical locks support, up to 1A
• Separate video camera power wire to use it as a source of video for DVR or motion detection recording - Type of sensor
- 1/2,9” CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
- Body structure
- Metal alloy + acrylic glass
