ХАРАКТЕРИСТИКИ
Детайли
·Metal+plastic housing
·Up to 4MP,2688×1520@25fps
·S+265/H.265/H.264B/H.264M/H.264H
·Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
·IR range up to 30m
·Built-in Mic
·Support microSD/microSDHC/microSDXC card,up to 512GB
·Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
·PoE:IEEE 802.3af,Max. 7W
·IP66
Данни
Производител
TIANDY
Коментари
Няма коментари!
ХАРАКТЕРИСТИКИ
|
Camera |
|
|
Image Sensor |
1/2.7"CMOS |
|
Min. Illumination |
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
IR-cut filter with auto switch (ICR) |
|
Smart IR |
Yes |
|
WDR |
DWDR |
|
S/N |
>39dB |
|
Angle Adjustment |
0~340°(P); 0~75°(T); 0~360°(R) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
2.8mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.6 |
|
Aperture Type |
Fixed |
|
Field of View |
109°(H); 59°(V); 125.4°(D) |
|
DORI Distance |
Detect:56m Observe:22.2m Recognize:11.2m Identify:5.6m |
|
Illuminator |
|
|
IR LEDs |
2 |
|
IR Distance |
Up to 30m |
|
Wavelength |
850nm |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~6Mbps |
|
Audio Compression |
G.711A/G.711U/ADPCM_D |
|
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|
Image |
|
|
Max. Resolution |
4MP,2688×1520@25fps |
|
Main Stream |
PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:24fps(2688×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) |
|
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
ROI |
8 rectangular static areas |
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
General Alarm |
Motion Detection; Mask Alarm |
|
Exceptions Alarm |
Disk Full; Disk R/W Error; IP Address Conflict |
|
Linkage Method |
Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
|
Video Analytics |
Tripwire; Perimeter |
|
Rules of Behavior Analyse In 1 Scene |
2 |
|
Network |
|
|
ANR |
Yes |
|
Protocols |
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; FTP |
|
System Compatibility |
P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T/G) ; SDK; CGI; Milestone; RTSP |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1*RJ-45 (10/100 Base-T) |
|
Built-in Mic |
Yes |
|
Reset Button |
Yes(Built-in) |
|
On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 512GB |
|
General |
|
|
Web Client Language |
19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
|
Operating Temperature |
-30℃~60℃(-22℉~140℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-30℃~60℃(-22℉~140℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
PoE:IEEE 802.3af,Max. 7W |
|
Protection |
Surge4000V; ESD6000V; IP66 |
|

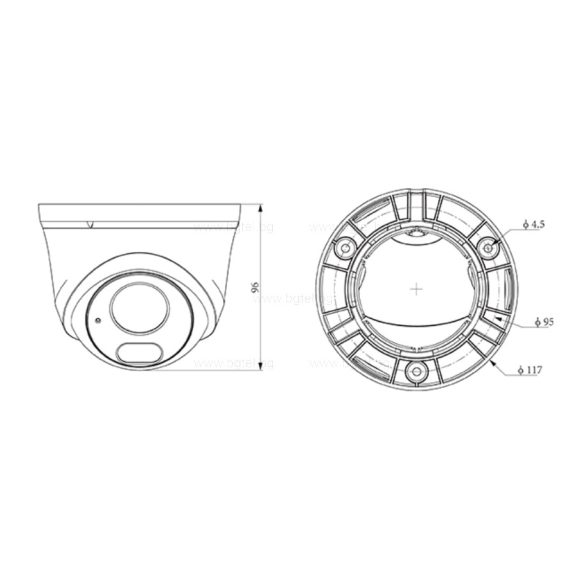

Boundary Dimensions |
117(L)117(W)96(H)mm |
|
Package Dimensions |
140(L)140(W)120(H)mm |
|
GrossWeight |
0.42kg |
