16 КАНАЛЕН МРЕЖОВ ВИДЕОРЕКОРДЕР С ИНСТАЛИРАНИ 4ТВ ТВЪРД ДИСК И 16 PoE ПОРТА - REOLINK RLN16-410-4T
Details
Info
Opinions
ХАРАКТЕРИСТИКИ
Details

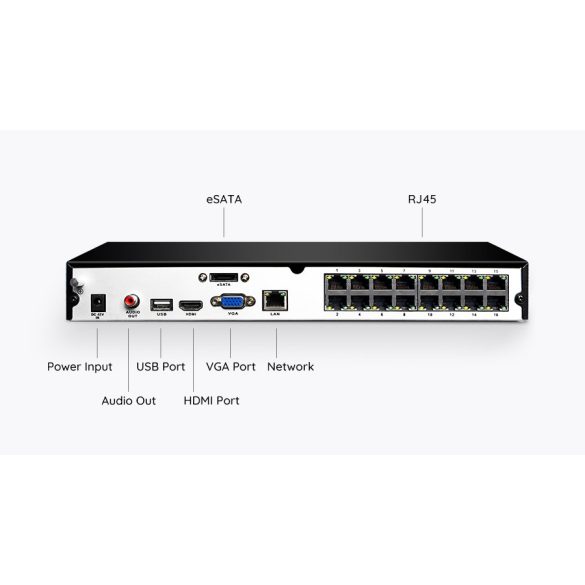

16 КАНАЛЕН МРЕЖОВ ВИДЕОРЕКОРДЕР С ИНСТАЛИРАНИ 4ТВ ТВЪРД ДИСК И 16 PoE ПОРТА - REOLINK RLN16-410
24/7 Continuous Recording
If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.
- Pre-installed 4TB HDD for 24/7 recording and monitoring.
- Support all cameras recording at the same time (up to 16 cameras).
- The motion detection recording function will trigger recording only when motion is detected. It’s much flexible and helpful for longer recording.
Customize Your Own Security Camera System
It supports all Reolink 12MP, 8MP, 5MP or 4MP IP cameras. You can choose up to 16 cameras (not included) to work with this NVR & build your own video surveillance system.
* Reolink NVRs are designed for Reolink security cameras ONLY.
Info
Manufacturer
REOLINK
Article No.
RLN16-410-4T
Opinions
No Topic!
ХАРАКТЕРИСТИКИ
|
RLN16-410-4K-PoE-NVR-Specifications |
||
|
Model |
RLN16-410 |
|
|
Hardware |
Hardware |
3TB HDD: H3MB18/N6MB01 4TB HDD: N6MB01 |
|
Video/Audio Input |
IP Video Input |
PoE IP camera x 16 |
|
Audio Input |
Cameras with built-in mic |
|
|
Video/Audio Output |
Video Output |
VGA, HDMI |
|
Display Resolution |
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768 |
|
|
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768 |
||
|
Audio output |
1-channel, RCA |
|
|
Decoding |
Live View / Playback Resolution |
4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/72 0p |
|
Video Format |
H.265, H.264 |
|
|
Synchronous Playback |
Up to 4 channels |
|
|
HDD |
SATA |
2 x SATA interface (1 x 3TB/4TB HDD included) |
|
Capacity |
Up to 12TB (max. 6TB capacity for each HDD) |
|
|
External HDD |
No |
|
|
External Interface |
USB Interface |
2 x USB 2.0 |
|
Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN |
|
|
16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
||
|
PoE |
Max. Power Per Port |
25W |
|
Supported Standard |
IEEE 802.3 af/at |
|
|
Network |
Network Protocol |
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
|
Browser Supported |
Firefox, Chrome, Edge, Safari |
|
|
OS Supported |
PC: Windows, Mac OS; smartphone: iOS, Android |
|
|
Max. User Access |
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
|
General |
Power Supply |
DC 48V~54V |
|
Power Consumption |
<10W (without HDD & PoE) |
|
|
Working Environment |
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
|
|

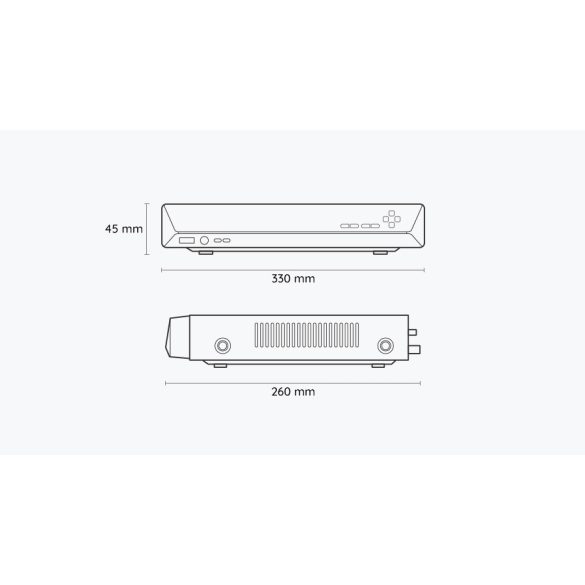

Dimensions |
330 x 45 x 285mm |
|
|
Weight |
2.4kg |
|
|
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
|
|
|
|
