ХАРАКТЕРИСТИКИ
Details
-
·Metal housing
·Up to 4MP,2688×1520@25fps
·S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
·Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR
·Built-in Mic
·Support microSD/microSDHC/microSDXC card,up to 512GB
·Support smart surveillance
·Support human/vehicle classification
·Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
·DC12V±25%,Max. 8W, PoE:IEEE 802.3af,Max. 9W
·IP67
Opinions
No Topic!
ХАРАКТЕРИСТИКИ
|
Camera |
|
|
Image Sensor |
1/1.8"CMOS |
|
Min. Illumination |
Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
NO IR-cut |
|
WDR |
120dB |
|
S/N |
>46dB |
|
Angle Adjustment |
0~360°(P); 0~90°(T); 0~360°(R) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
4mm |
|
Lens Mount |
M16 |
|
Aperture Range |
F1.0 |
|
Aperture Type |
Fixed |
|
Field of View |
94.5°(H); 50.2°(V); 110.2°(D) |
|
DORI Distance |
Detect:80m Observe:31.7m Recognize:16m Identify:8m |
|
Illuminator |
|
|
White LEDs |
4 |
|
Whitelight Distance |
15m |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
|
Video Bit Rate |
32k~16Mbps |
|
Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
|
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|
Image |
|
|
Max. Resolution |
4MP,2688×1520@25fps |
|
Main Stream |
PAL:25fps(2688×1520, 2560×1440, 2304×1296), 50fps(1920×1080, 1280×720) NTSC:30fps(2688×1520, 2560×1440, 2304×1296), 60fps(1920×1080, 1280×720) |
|
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
Third Stream |
PAL:25fps(1280×720, 704×576, 704×288, 352×288) NTSC:30fps(1280×720, 704×480, 704×240, 352×240) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
ROI |
8 rectangular static areas |
|
Corridor Mode |
Yes |
|
OSD |
Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96 |
|
Picture Overlay |
1*200x200 size BMP 24 color bit image overlay |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
General Alarm |
Motion Detection; Mask Alarm |
|
Exceptions Alarm |
Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception |
|
Linkage Method |
Send Email; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
|
Video Analytics |
Human/Vehicle Classification; Tripwire; Perimeter |
|
Rules of Behavior Analyse In 1 Scene |
7 |
|
Network |
|
|
ANR |
Yes |
|
Protocols |
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; FTP; SFTP |
|
System Compatibility |
ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone; RTSP; RTMP |
|
Remote Connection |
≤7 |
|
Client |
Easy7 VMS |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1*RJ-45 (10/100 Base-T) |
|
Built-in Mic |
Yes |
|
Reset Button |
Yes |
|
On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 512GB |
|
RTC |
Yes |
|
General |
|
|
Web Client Language |
19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
|
Operating Temperature |
-40℃~65℃(-40℉~149℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-40℃~65℃(-40℉~149℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC12V±25%,Max. 8W; PoE:IEEE 802.3af,Max. 9W |
|
Protection |
Surge4000V; ESD6000V; IP67 |
|

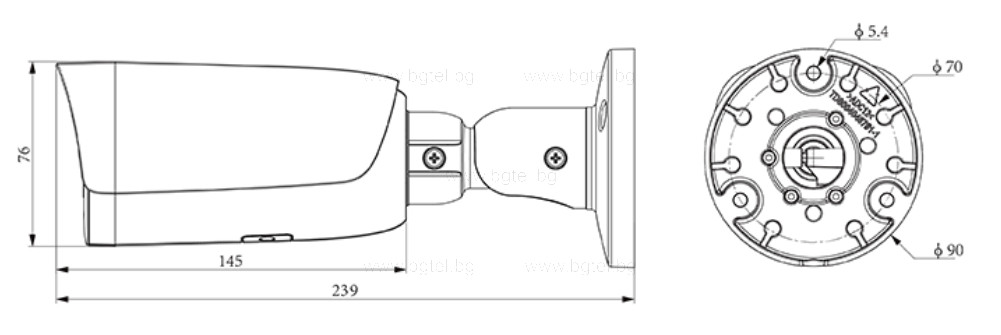

Boundary Dimensions |
239(L)90(W)90(H)mm |
|
Package Dimensions |
280(L)125(W)140(H)mm |
|
GrossWeight |
1.28kg |
