PoE Switch

TC-P3S019
Spec:H/1621/AT/180
·16*10/100M POE ports + 2* 1000M Ethernet Uplink ports +1*1000M SFP Port;
144.09 €
Add to cart
To Favourites
Print
Comparison
Details
Opinions
ХАРАКТЕРИСТИКИ
Details

·16*10/100M POE ports + 2* 1000M Ethernet Uplink ports +1*1000M SFP Port;

·Comply with IEEE 802.3, IEEE802.3u,IEEE802.3ab, IEEE802.3z standards;

·Ethernet port 10/100M rate auto adaptive; n PoE port is in Extend mode, and ports 1-16 force 10M to automatically turn on AI mode;

·Supports POE priority, in order from 1 to 16 ports, enabled by default;

·Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex;

·Zero configuration feature, automatically supplied to adaptive devices;

·Monitor the working status of the panel indicator light and assist in fault analysis;

·It is equipped with a three gear one key intelligent Dip switch, which supports VLAN, Default and Extend modes;

·Support port lightning surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: air 8KV, contact 6KV.（level B）

Opinions
No Topic!
More reviews and write review
ХАРАКТЕРИСТИКИ

I/O Interface

Power

AC INPUT (100-240 V)

Ethernet

16 Port 10/100M PoE ,2 Port 1000M Ethernet Uplink,1 Port 1000M SFP

Performance

Bandwidth

9.2Gbps

Throughput

6.84Mpps

Packet Buffer

3Mbit

MAC Address

2K

Transfer Mode

Store and forward

Standard

Network Protocol

IEEE802.3(Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3x (Flow control)
IEEE 802.3z (Gigabit Ethernet fiber optic standard)

PoE Protocol

IEEE802.3af (15.4W)
IEEE802.3at (30W)
POE port output voltage: DC 52V
POE power supply core: 1/2+; 3/6-

Industrial Standard

EMS: EN61000-4-2 (ESD)、 IEN61000-4-5 (Surge)

Network Medium

10BASE-T: Cat 3、4、5 UTP (≤100   meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000Base-TX: Cat5 or more UTP/STP (≤100 meter)

Optical Medium

Multimode fiber: 50/125、62.5/125、100/140um
Single mode fiber: 8/125、8.7/125、9/125、10/125um

Function

LED Indicators

PWR (Power indication),   Mode (Dial indicator),1-19Green (Link & Data), POE Max (Power display)

PWR

On: Powered on
Off: Powered off

POE LED Buttons

Dual color light   selection: default green (link data), switch yellow light (POE)

Environment

Working Environment

Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity :10%~90%, non-condensing
Storage Temperature:5%~95%, non-condensing

Physical Specifications

Dimension

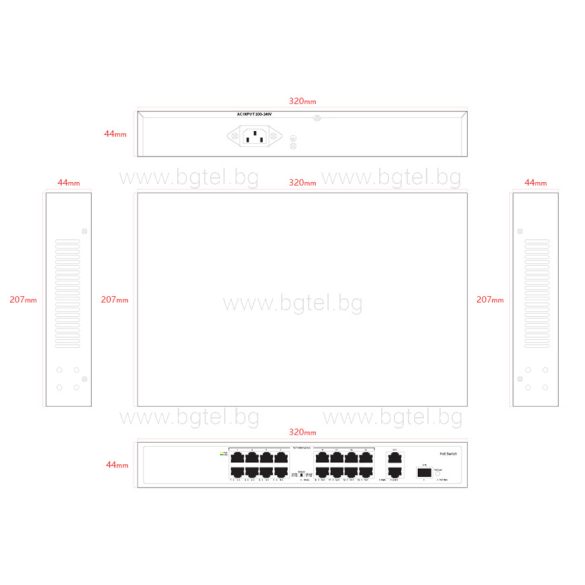

Product   Dimension:320*207*45mm
Package Dimension:370*290*85mm
N.W:1.61KG
G.W:2.14KG

Packing Info

Carton MEAS:445*310*390mm
Packing Qty:5 set
Packing Weight:11.7KG

Power Voltage

Input Voltage: AC 100-240 V 50-60Hz
Power supply:52V /3.84A

Power

Non POE board power: maximum 6W
POE power: maximum 180W
